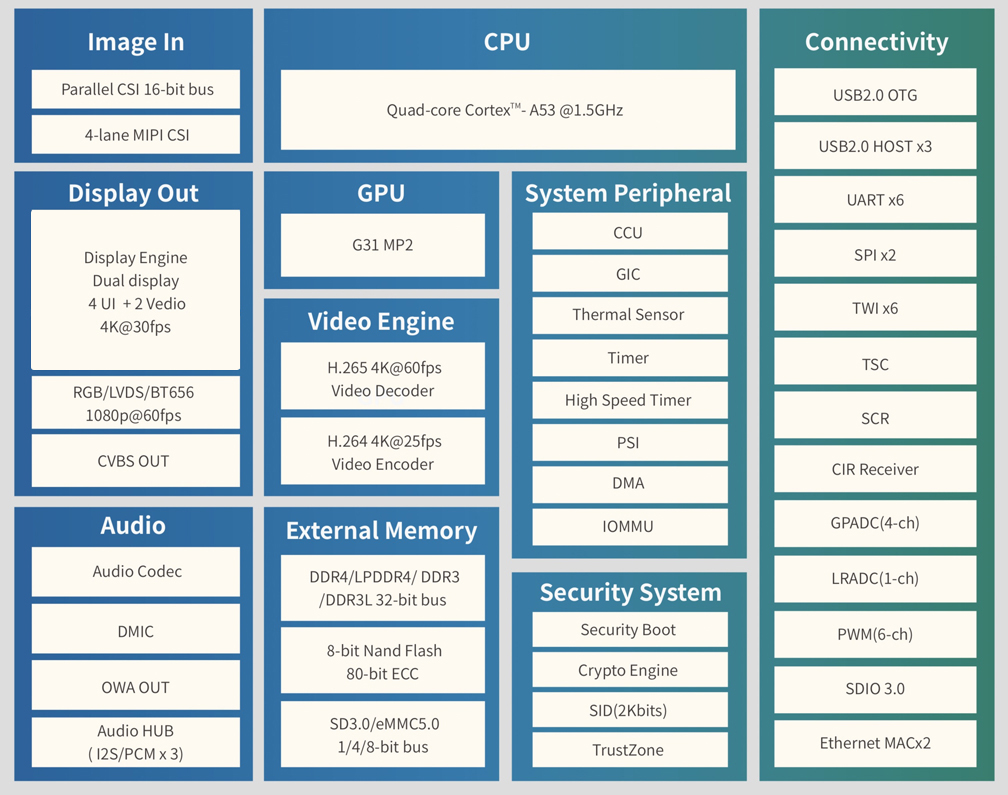

CPU• Quad-core ARM Cortex-A53@1.5GHz
GPU
• G31 MP2
• Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0
Memory
• 32-bit DDR4/DDR3/DDR3L/
LPDDR3/LPDDR4 interface,
supporting maximum capacity of 4GB
• SD3.0/eMMC5.0 interface
• 8-bit Nand flash interface with maximum 80-bit/1KB ECC
Video Engine
Video decoder:
• H.265 MP decoder up to 4K@60fps
• H.264 BL/MP/HP decoder up to 4K@30fps
• VP9 decoder up to 4K@60fps
• AVS2 decoder up to 4K@60fps
• Multi-format 1080p@60fps video playback, including VP8, MPEG1/2 SP/MP, MPEG4 SP/ASP, AVS+/AVS JIZHUN, VC1 SP/MP
Video encoder:
• H.264 encoder up to 4K@25fps
• MJPEG encoder up to 4K@15fps
• JPEG encoder up to 8K x 8K resolution
Package
• TFBGA 421balls
• 15 mm x 15 mm size,0.65 mm ball pitch,0.35 mm ball size
|
Video Input
• Supports one 8-/10-/12-/16-bit digital camera(DC) interface
• Maximum pixel clock of 148.5MHz for each DC interface
• BT656, BT1120 video input for multichannel YUV
• Four-lane MIPI CSI, up to 1Gbps per lane in HS transmission, compliant with MIPI-CSI2 V1.00 and MIPI DPHY V1.00
• Maximum video capture resolution of 8M@30fps or 4x 1080p@25fps for MIPI CSI
• Supports formats: YUV422, YUV420, RAW-8, RAW-10, RAW-12
Audio
• Two DAC channels and four ADC channels
• Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR)
• One Audio HUB, supporting internal mixing function
• Embedded 3 I2S/PCM for connecting the external devices
(I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier)
• Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode
• I2S mode supports 8 channels, and 32-bit/192kbit sample rate
• I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate
• One OWA IOUT interface, supporting 16-/20-/24-bit outputs
• Integrated digital microphone, supporting maximum 8 digital PDM microphones
Process• 28nm HPC
|
Display Output
• TV CVBS output, supporting PAL/NTSC
• LVDS interface with dual link, up to 1080p@60fps
• RGB interface with DE/SYNC mode, up to 1080p@60fps
Security Engine
• Supports Full Disk Encryption
• AES, DES, 3DES, and XTS encryption and decryption algorithms
• MD5, SHA, and HMAC tamper proofing
• RSA, ECC signature and verification algorithms
• Supports 160-bit hardware pseudo random number generator(PRNG) with 175-bit seed
• Supports 256-bit hardware true random number generator(TRNG)
• Integrated 2K-bit EFUSE for chip ID and security application
Connectivity
• 3 x USB2.0 Host, 1 x USB2.0 OTG
• 2 x Ethernet MAC (one 10/100 Mbps Ethernet port with RMII interface, one 10/100/1000 Mbps Ethernet port with RGMII and RMII interfaces)
• SDIO 3.0, TSC, SCR, CIR Receiver
• 6 x TWI, 2 x SPI, 6 x UART
• 6-ch PWM, 4-ch GPADC, 1-ch LRADC
PMIC• Companion Allwinner Power Management IC
|
