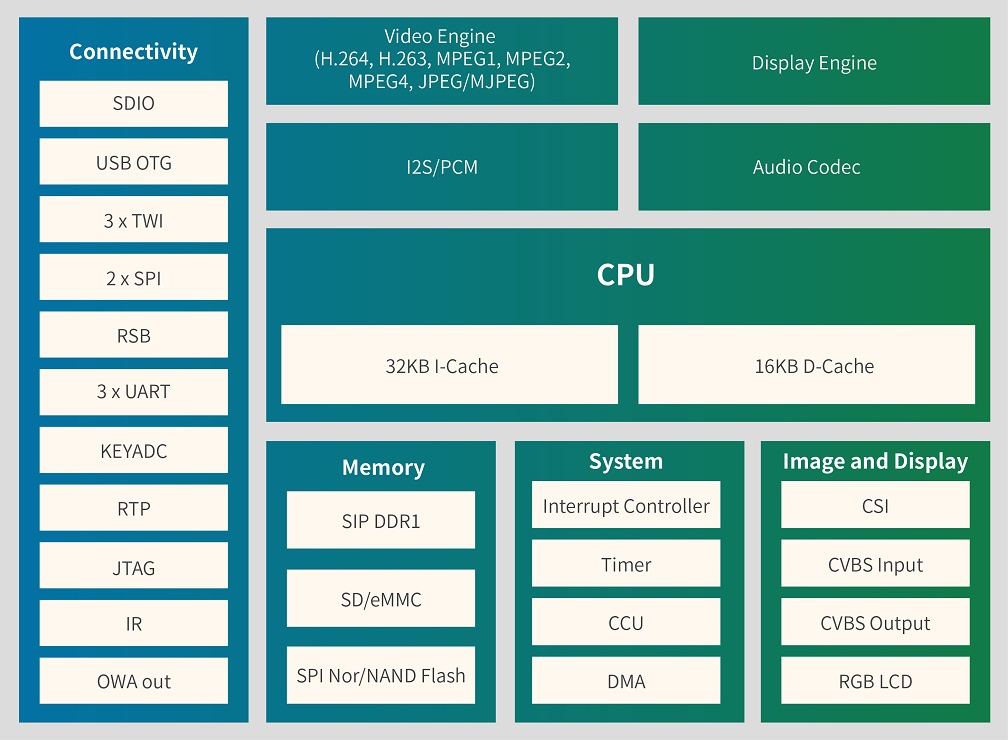

CPU•ARM9 CPU architecture
•16KByte D-Cache
•32KByte I-Cache
Memory•SIP 64MB DDR1
•SD2.0, eMMC 4.41
Video•H.264 1920x1080@30fps decoding
•MPEG1/2/4 1920x1080@30fps decoding
•MJPEG 1280x720@30fps encoding
•JPEG encode size up to 8192x8192
|
Camera•8-bit CMOS-sensor interface
•CCIR656 protocol for NTSC and PAL
Audio•Integrated analog audio codec with two DAC channels and one ADC channel,maximum 192kHz DAC sample rate and 48kHz ADC sample rate
•One I2S/PCM interface
Display•LCD RGB interface up to 1280x720@60fps
•TV CVBS output, support NTSC/PAL, with auto plug detecting
|
Connectivity•USB OTG, SDIO,IR, 3 x TWI, 2 x SPI, 3 x UART
OS•Melis, Linux OS
Package•QFN88, 10mm x 10mm
Process
|
