A63

极具竞争力2K智能平板及其衍生产品解决方案

产品

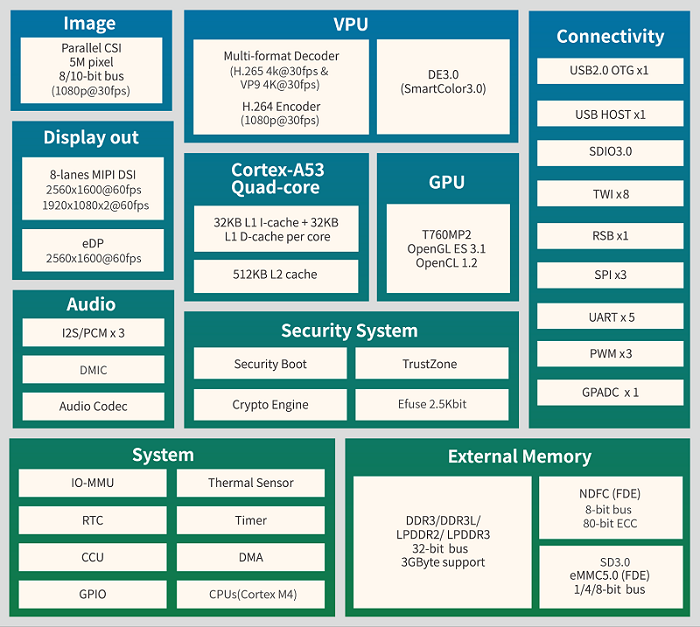

芯片框图

A63

基本规格

CPU

• Quad-Core ARM CortexTM-A53
• 32KB L1 I-cache + 32KB L1 D-cache per core
• 512KB L2 cache
• Low-power CoolFlexTM power management architecture

GPU

 Mali-T760

 Supports OpenGL ES 3.2/3.1/3.0/2.0/1.1, DirectX 11.1, OpenCL 1.2/1.1 and Renderscript


Memory

• Supports 32-bit DDR3/DDR3L/LPDDR3/LPDDR2

• Supports eMMC 5.0,support Full Disk Encryption(FDE)
• Supports 8-bit TLC/MLC/SLC/EF NAND flash with 80-bit ECC, supports FDE

Display

• Supports output size up to 2560x1600

• Supports edge-direction interpolation and sharpness enhancement for video playback Supports SmartColor3.0 post processing for an excellent display experience
• Supports Frame Packing/Top-and-Bottom/Side-by-Side Full/Side-by-Side Half 3D format data

Video

• Supports HEVC decoder 4K@30fps

• Supports VP9 decoder 4K@30fps
• Supports H.264 decoder 4K@30fps
• Supports multi-format 1080p@60fps video playback, including VP8,MPEG1/2, MPEG4 SP/ASP L5, H.263,WMV9/VC-1

• Supports H.264 HP encoder 1080P@30fps

• Supports macro block bit rate control

• Supports JPEG encoder 4096x4096

Camera

• Supports 8/10bit DC interface

• Supports BT656 interface
• Supports ITU-R BT.656 time-multiplexed format
• Supports image crop function
• Maximum still capture resolution for parallel interface to 5M
• Maximum video capture resolution for parallel interface to 1080P@30fps


Audio

• Supports stereo ADC and DAC

• Supports five analog audio inputs and three analog audio outputs Capless headphone driver

Connectivity

• USB Host, USB 2.0 OTG
• SDIO 3.0,RSB
• 8x TWI,3x SPI,
• 5x UART,3x PWM
• GPADC

WIFI

• Supports ac/b/n/g/a

OS

• Android 7.1 and above

PMIC

• Customized AXP802

Package

• FCBGA 463
• 15mm x 15mm size,0.65 pitch,0.35 ball size

Process

• 28nm HPC

方案亮点

强悍4K解码
强悍4K解码
超清FHD显示
超清FHD显示
超低功耗
超低功耗
超高集成度
超高集成度

典型机型

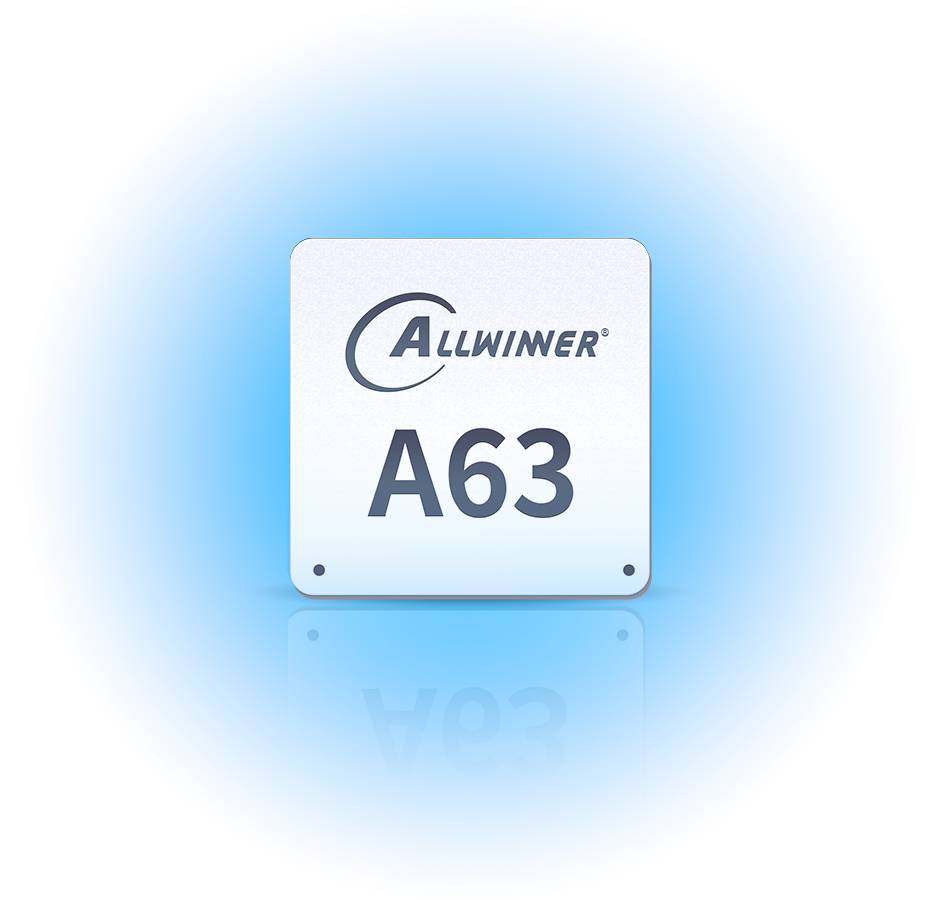

A63
